Feed Horns

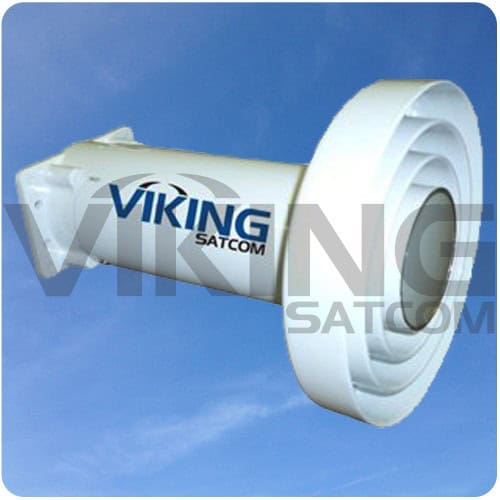

Single Port C Band Circular / Linear Feed / - FEED-VS-RP3CP300

Prime Focus Single Port C band Circular / Linear Switchable Feed
Extended C band:  3.4 - 4.2Ghz
f/D Range: .335 to .425
Axial Ratio (Circular):  = 1.9 Typical
Manually Switchable from C band Circular to Linear
Universal Mounting
For use with New Antennas or Upgrading existing Antennas

Specifications - Switching Instructions

Single Port C Band Circular / Linear Feed - FEED-VS-RP3CP300

$443.00 plus $15.00 Shipping within the 48 Cont. United States

Call or e-mail to Check for Special Offers - 816-228-1801

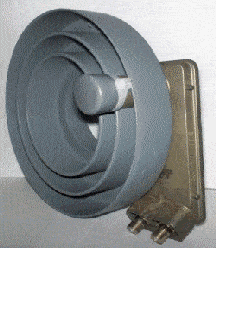

Dual Port C Band Linear Feed Wideband - FEED-2C-EXT

C Band Linear Dual Port Feed for Prime Focus Antennas
C Band: 3.4 - 4.2 GHz
Adjustable Scalar Ring
Universal Mounting - Fits many different types of Antennas

Specifications

Dual Port C Band Linear Feed Wideband - FEED-2C-EXT

$421.00 plus $15.00 Shipping within the 48 Cont. United States

Call or e-mail to Check for Special Offers - 816-228-1801

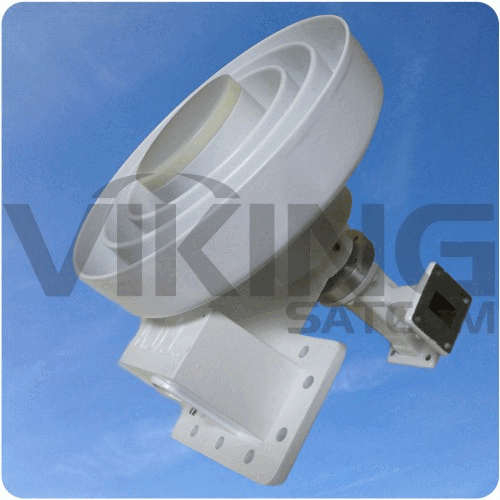

ADL 4 Port Dual C/Ku Band Feed Horn Assembly for Linear Prime Focus Satellite Dish - FEED-4CKU-ADL

4 Port Dual C/Ku Band Feed for Prime Focus Antennas
Simultaneous Reception of Dual C & Ku Band Polarites
C-Band 3.7 to 4.2 GHz
Ku-Band: 10.7 - 12.75 GHz
Universal Mounting - Fits many different types of Antennas
Replacement for Chaparral Bulls-Dyd II - 11-3179-1 Model
No Servo Motor Needed

Specification

ADL 4 Port Dual C/Ku Band Feed Horn Assembly for Linear Prime Focus Satellite Dish - FEED-4CKU-ADL

$622.00 plus $20.00 Shipping within the 48 Cont. United States

Call or e-mail to Check for Special Offers - 816-228-1801

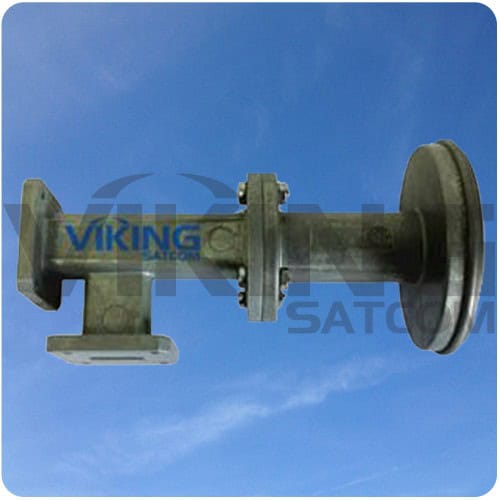

ADL Dual Port Ku Band Linear Feed Horn - ADL FEED-KU920

Ku-Band Linear Dual Polarity Feed Horn for Prime Focus Satellite Antennas
Ku-Band: 10.7 to 12.75 GHz
Cross Pol Isolation: 35db Min.
f/D Range: .33 - 4.25
WR75 Wave Guide
Optional Mounting Ring (#ADL-OP120MR)

Specifications

ADL Dual Port Ku Band Linear Feed Horn - ADL FEED-KU920

$523.00 plus $20.00 Shipping within the 48 Cont. United States

Call or e-mail to Check for Special Offers - 816-228-1801

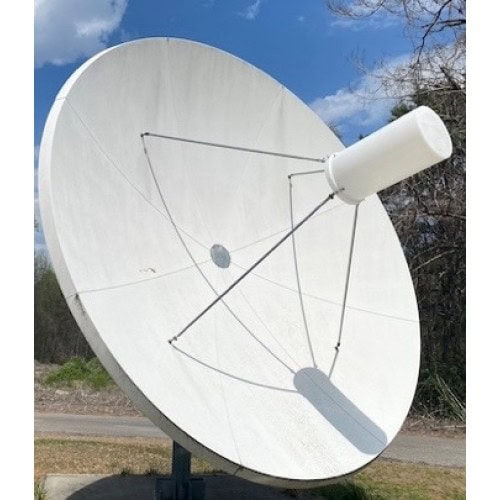

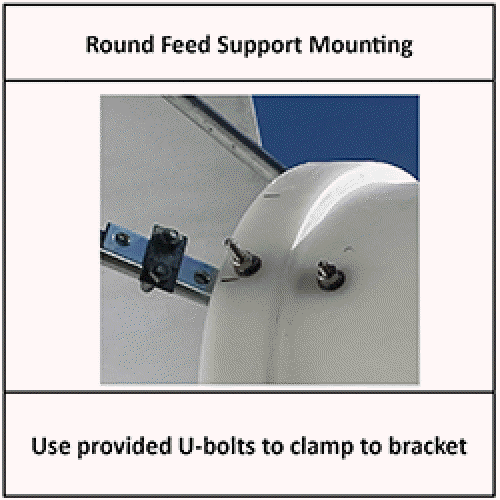

EXTRA LONG 5G FEED COVER - COV-FEED-VKG

Designed and Built Longer to be able to cover the Feed Horn, LNB & 5G Filter.

Specifications

Reduces exposure of Feed and RF Components to the elements.

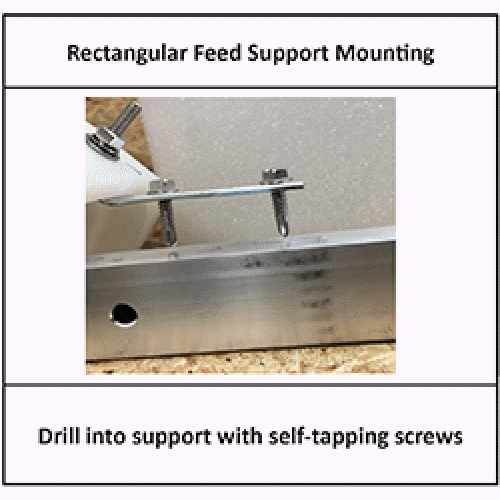

For use with Quad or Tri Feed Supports
Includes Mounting Hardware
Pre-drilled for 4 feed support configuration (90° holes)
In the field adaptable to 3 feed support configuration (120° holes)
Operator to bend brackets to match angle of feed supports
Length = 27” / Diameter = 14.5” / Weight approximately 9 Lbs
Ku band H-Bend needed if using FEED-4CKU

EXTRA LONG 5G FEED COVER - COV-FEED-VKG

$258.00 plus $20.00 Shipping within the 48 Cont. United States

Call or e-mail to Check for Special Offers - 816-228-1801

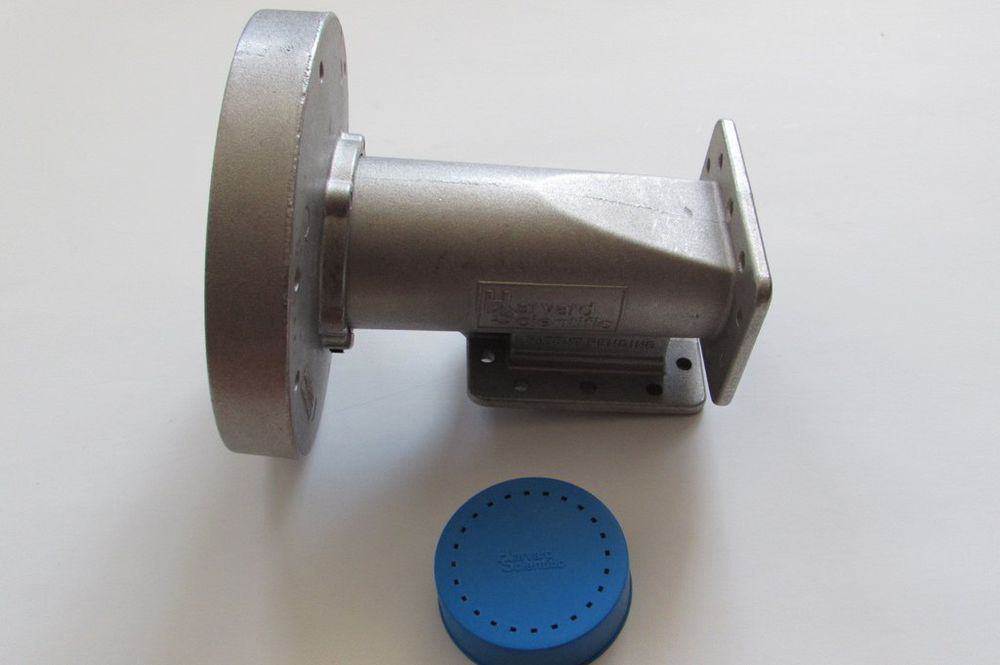

Feed Horn Cap - $10.00 Includes Shipping

Keep the Bee's and Wasp's Out of your Feed Horn!

$10.00 Incluldes Shipping within the 48 Cont. United States

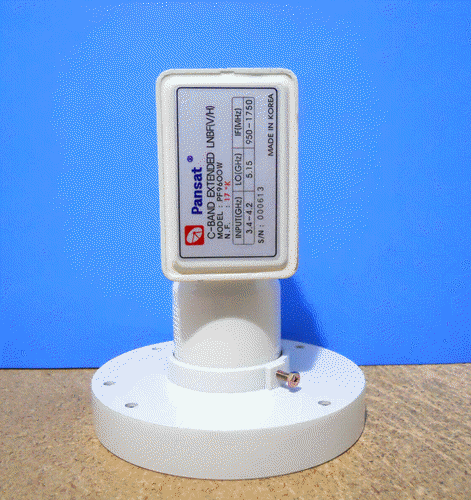

PF9600W PANSAT Wideband C-Band LNBF - $49.99

Input Frequency Range : 3.4 ~ 4.2 GHz
Output Frequency Range : 950 ~ 1750 MH
L.O. & Stability (Over Temp.) : 5.15 GHz +/- 2MHz
Noise Temp.(@ + 25°C) : 17 degree K max.
Input VSWR : 2.5 : 1 Typ.
Image Rejection : 40 dBc Min.
Conversion Gain : 65 dB Typ.
Output VSWR : 2 : 1 Typ.
Gain Flatness : 6 dBp-p Max.
Gain Ripple(@per Channel) : +/- 0.75dB Max.
P1dB Gain Compression Point : +5 dBm Max
Output Impedance : 75 O
Leakage(@ Input Port) : -60 dBm Max.
Phase Noise : -80 dBc/Hz(@ 10KHz), -95 dBc/Hz(@ 100KHz), -110 dBc/Hz(@ 1 MHz)
Power Supply : +12 to +24V DC
Requires Current : 150 mA Max.
Operating Temperature : -30°C ~ +60°C
Storage temperature : -40°C ~ +80°C
Relative Humidity : 0% ~ 95% RH
Input Waveguide flange : WR-229
IF Output Connector : F-Type Female
Weight : 510g

PF9600W PANSAT Wideband C-Band LNBF - $49.99
$59.99 Includes Shipping within the 48 Cont. United States

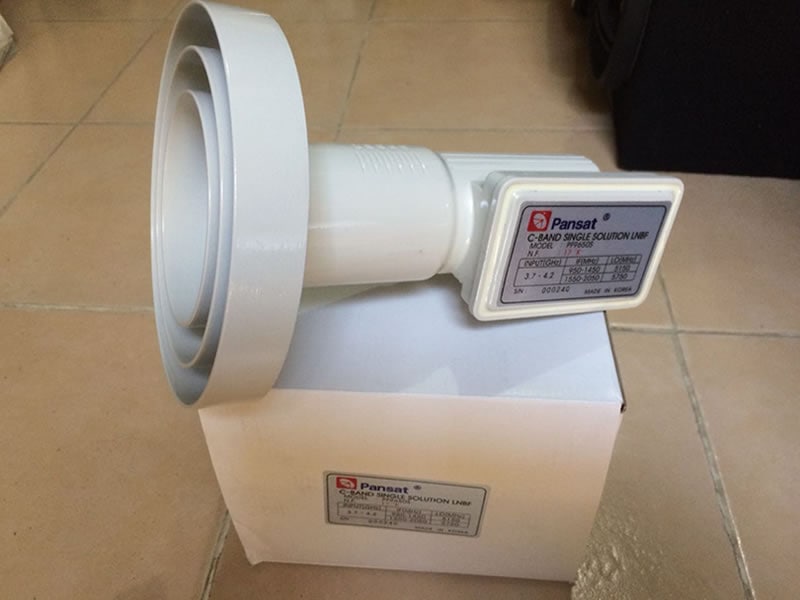

PF9650S PANSAT Stacked C-Band LNBF - $59.99each

Input Frequency Range : 3.7 ~ 4.2 GHz
Output Frequency Range : 950 ~ 1450 MHz / 1550 ~ 2050MHz
LO. Frequency Range : 5.15 GHz +/- 2MHz, 5.75 GHz +/- 2MHz
Noise Temp.(@ + 25°C) : 35°K max.
Input VSWR : 2.5 : 1 Typ.
Image Rejection : 40 dBc Min.
Conversion Gain : 65 dB Typ.
Output VSWR : 2 : 1 Typ.
Gain Flatness : 6 dBp-p Max.
Gain Ripple(@per Channel) : +/- 0.75dB Max.
P1dB Gain Compression Point : +5 dBm Max
Output Impedance : 75 O
Leakage(@ Input Port) : -60 dBm Max.
Phase Noise : -80 dBc/Hz(@ 10KHz), -95 dBc/Hz(@ 100KHz), -110 dBc/Hz(@ 1 MHz)
Power Supply : +12 to +24V DC
Requires Current : 150 mA Max.
Operating Temperature : -30°C ~ +60°C
Storage temperature : -40°C ~ +80°C
Relative Humidity : 0% ~ 95% RH
Input Waveguide flange : WR-229
IF Output Connector : F-Type Female
Weight : 520g

This LNBF is the perfect solution for those Free-To-Air Satellite Installations where you have only 1 cable, but want to use Multiple Receivers.
You can bring the one cable inside and connect to a High Frequency Single Port Power Passive Splitter and then feed Multiple Receivers and
Set the LNBF setting in the Antenna Setup Menu to 5150/5750 or OCS or One Cable System and then all of the connected receivers can select
Vertical or Horizontal independently. You just need to make for sure that the receiver you are using offers these settings in the menu.

PF9650S PANSAT Stacked C-Band LNBF - $59.99each
$69.99 Includes Shipping within the 48 Cont. United States
