Actuator Arms & Accessories Venture's sincere desire to satisfy each and every one of our customers’ needs has led us to this certification. Venture Mfg. Co. - ISO 9001:2015 Certified Company We are honored to have achieved this and will continue to use the principles of this set of international guidelines to achieve success in our partnerships with our customers. Ricks Satellite USA is Proud to Offer these Great Products from Venture Mfg. Company!

High Quality Actuators,  easy to install, Single Screw Adjustment Limit Switches, water drains and vents through out for freeze protection. Pilot guide prevents binding and scraping.Long life ball screw or high quality acme screw actuation, 30% duty cycle motor ratings. High strength steel tube assembly with all-steel load support members, Tube surfaces and exposed metal components are specially treated for corrosion resistance.

Venture Mfg. Co. Actuators are Diversely Used in the Following Satellite-related Applications:

* Our linear actuators help in facilitating agile movement of gimbals, fast-paced retargeting, and high-resolution imaging by the satellites.
* Ball Screw version of the “Maxi” actuator provides durable and trustworthy services for heavy dish antennas.
* Built-in sensor actuators are helpful in providing feedback for velocity and the position of satellites, eventually increasing their effectiveness.
* Home satellites in the TVRO industry make use of our smartly designed ‘Maxi’ satellite for reliable signal tracking and receiving.
* Venture’s maxi acme actuators are essentially used in miniature mesh dishes (commercial satellites) for providing sturdy and durable ready-to-install linear drive system.

At Venture Mfg Co, we aim to provide the best actuator solutions for various types of satellites. In case you cannot find perfect fit for a particular type, we have a team of experts who design customized actuators along with all the required accessories. Spacecraft and satellite industry can be truly benefitted from our high-end linear actuators. Need for a Special Actuator Built? Venture is the Company that can do it!

For Special Applications, E-mail or Call Ricks Satellite with the details of what you need and we will see if it can be built and get you a price. 816-228-1801
Venture Actuators are not just Great for Satellite Dishes, but also work for many other applications...

For one of our customers, he uses his Venture Actuator as a Gate Opener for his Chickens. He has it set so when the Sun comes up, that it activates the Venture Actuator to open the gate and when the Sun goes down, it activates the Venture Actuator to close the gate. The Chickens know to get back in before dark, or they may get ate by the Coyotes!

Another customer has a Rock Wall Climbing Business and he has 2 - 48" Venture Actuators that are mounted on the Top of one of their Climbing Walls and they use our PR1200 V-Box Dish Movers to run the Venture Actuators to Tilt the top of the wall forward for a steeper climb and then retract it when finished.

How to Adjust a Physical Limit Switch on an Actuator Arm

Venture Mini MA-710-18T - $129.00
500 lb. Load, 6' to 7.5' Suggested mesh dish size.

Venture Mini MA-710-18T
$157.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $129.00 plus $28.00 Shipping and Handling

Description
Operating satellite’ platforms and payload devices demand precision engineered miniature electric linear actuator units that are made to withstand hostile environment. At Venture Manufacturing, you get the right type of satellite actuators that meet the kind of performance and reliability you have been looking for. Our range of Mini T Standard Duty satellite actuators are known for high external load capability and long life performance. Manufactured specifically using precision SSII sensor, this mini T actuator jack type from Venture Manufacturing is ideal for smaller lightweight dishes positioning, antenna deployment, antenna pointing, solar array deployment, electric propulsion pointing, among others. Our 18 inch Mini T Actuators are highly regarded by renowned customers from the space industry worldwide.

Typical Features of Mini T Standard Duty Satellite Actuators
The mini electric actuator is designed to withstand a wide range of temperatures, vacuum, outgassing, radiations and other such challenges. These user-friendly and easy-to-install satellite linear actuators feature:

Rugged steel tube construction
Standard stroke 18 "
30% duty cycle motor rating
500 lb. capacity
Quiet operation
Powder coated outer tubes for superior corrosion protection
End mount design with swivel and built in standoffs for ½" bolt mounting
Easy to adjust clamp assembly for ½" bolt mounting
Adjustable limit switches
Water drains and vents throughout for freeze protection
KU or C band compatible
36/24vdc motor
Super Sensor II Reed Switch 48 PPI
Epoxy power coated steel tube and high grade plated hardware
Excellent water proofing
Lifetime lubrication
Long life Acme screw

Venture MAXI MA-834118331-24M6P - $ 347.00 plus shipping
Price listed includes an additional Steel Surcharge.
24” Stroke Acme w/6 Pole Magnet for a 48 Pulse Count, 8' to 12' Suggested mesh dish size.

I had this model built with a special higher pulse count. Now with 48 Pulse Count to allow for better accuracy in postioning your dish!

For years the Venture “Maxi” has been the staple of the Home Satellite TVRO Industry. With over 1 million produced we still provide the industry with these reliable actuators for service and new installation needs.

Venture MAXI MA-834118331-24M6P
$389.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 347.00 plus 42.00 Shipping and Handling

Add an 24" Accordion Boot to this 24" Actuator for 45.00 with No Additional Shipping

Description
The maxi acme screw actuators are widely used in a number of applications in several industries. These satellite actuators are precision manufactured and specially designed to withstand different hostile conditions. Along with the capability of surviving the harshest conditions, these satellite actuators are capable of delivering the best output, thus improving the overall performance of the equipment that they are used with.

There are a number of companies that manufacture and supply these actuators, but Venture Mfg. Co. stands tall among them all. We have a vast experience in providing high-quality maxi acme screw actuators. These actuators that we provide are capable of delivering unmatched performance and service. This makes them highly reliable and the most preferred among the other types of actuators.

Beneficial Features of the Maxi Acme Screw Actuators Provided by Venture Mfg. Co.
There are countless features of the maxi acme screw actuators, which make them popular in a variety of applications and industries.
Here are some really amazing features of these satellite maxi actuators:

The plated inner tube and the outer tube are black E-coated. This provides ultimate protection to the tubes from corrosion.
The split clamp assembly for ½” bolt mounting of the satellite maxi actuators is very easy to install and does not take much time.
These actuators feature steel tube assembly, which has a high strength. This assembly comes with all-steel load support members.
The satellite maxi actuators also feature limit switches for single screw adjustment.
The 30% duty cycle motor ratings of these actuators, is one of the major reasons of their increasing popularity.
Effective freeze protection is provided by the vent throughout and water drains that come with these actuators.
High quality acme screw or long life ball screw actuation is one of the most striking features of these actuators.
These actuators feature a pilot guide, which helps prevent scraping and binding.
The maxi acme screw actuators feature Super Sensor II reed switch.
The satellite maxi actuators can be effectively interchanged with all the other actuators available in the field.
The ½” bolt mounting is very easy, thanks to the built in standoffs and forged steel end mount design with swivel.
The rugged steel tube construction makes these actuators capable of surviving harsh environments.
The compact design of these satellite maxi actuators makes it easy to install, as well as user friendly.
Another important beneficial feature of the maxi acme screw actuators is that they are KU or C band compatible.

Venture MAXI Ball Screw MA818-B24 - $399.00 plus shipping
Price listed includes an additional Steel Surcharge.
24” Stroke Ball Screw Has an 8 Pole Magnet for 40 Pulse Count, comes with an Accordion Boot, 8' to 16' Suggested mesh dish size.

For years the Venture “Maxi” has been the staple of the Home Satellite TVRO Industry. With over 1 million produced we still provide the industry with these reliable actuators for service and new installation needs.

Venture MAXI Ball Screw MA818-B24
$447.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $399.00 plus $48.00 Shipping and Handling

Description
Venture’s maxi ball screw actuators are available in standard models or can be customized to meet the specific needs of several industrial sectors. The actuator type, which is a ball screw version of the “Maxi”, is suitable for positioning heavier dishes. This actuator provides you years of reliable service and is preferred for many linear positioning applications.

Ball Screw Linear Actuator Features
Venture’s name is trusted and widely heard in the market place for precision made linear actuator ball screw guaranteed with high performance. Featuring heavy wall steel construction and sealed chamber design, this actuator type from Venture provides you with high efficiency and high speed while executing heavy duty linear positioning applications.

The Linear Ball Screw Actuators from Venture Exhibit the Following Unrivalled Features:

Rugged steel tube construction
The split clamp assembly for ½” bolt mounting of the satellite maxi actuators is very easy to install and does not take much time.
Easy-to-install
User friendly design and operation
5 pitch ball screw
1500 lb. capacity
Tube and gearbox easily taken apart for installation and service with simple tools
Interchanges with virtually all other actuators in the field today
Black E-coated outer tube and plated inner tube for superior corrosion protection
Plastic Pilot guide prevents metal to metal contact between the tubes
Forged steel end mount design with swivel and built in standoffs for ½” bolt mounting
Easy to install split clamp assembly for ½” bolt mounting
Mounting bolt kit included
Water drains and vents throughout for freeze protection
KU or C band compatible
36/24vdc motor
5amps @1500 lbs @ 36vdc

Venture MAXI MA-834118331-36M6P - $424.00
Price listed includes an additional Steel Surcharge.
36” Stroke Acme w/6 Pole Magnet for a 48 Pulse Count, 8' to 16' Suggested mesh dish size.

I had this model built with a special higher pulse count. Now with 48 Pulse Count to allow for better accuracy in postioning your dish!

For years the Venture “Maxi” has been the staple of the Home Satellite TVRO Industry. With over 1 million produced we still provide the industry with these reliable actuators for service and new installation needs.

Venture MA-834118331-36M6P
$478.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 424.00 plus 54.00 Shipping and Handling

Add an 36" Accordion Boot to this 36" Actuator for $70.00 with No Additional Shipping

Venture Mfg 36", 1500 lb load, 48 Pulse, 12' - 16' Suggested mesh dish size
Venture Maxi Actuators combine a long life Acme Screw with a DC voltage electric motor providing a high performance ready to install linear drive system
Standard strokes 16", 30% duty cycle motor rating, Clutch, Limit Switches
High strength steel tube assembly with all-steel load support members, Long Life Acme Screw 24VDC/36VDC Gearbox Design
Reed, 3000 lb static capacity / 250 lb dynamic compression or tension, Mounting clamp included Lifetime lubrication, Designed for outdoor use, Compression or tension loads

Description
The maxi acme screw actuators are widely used in a number of applications in several industries. These satellite actuators are precision manufactured and specially designed to withstand different hostile conditions. Along with the capability of surviving the harshest conditions, these satellite actuators are capable of delivering the best output, thus improving the overall performance of the equipment that they are used with.

There are a number of companies that manufacture and supply these actuators, but Venture Mfg. Co. stands tall among them all. We have a vast experience in providing high-quality maxi acme screw actuators. These actuators that we provide are capable of delivering unmatched performance and service. This makes them highly reliable and the most preferred among the other types of actuators.

Beneficial Features of the Maxi Acme Screw Actuators Provided by Venture Mfg. Co.
There are countless features of the maxi acme screw actuators, which make them popular in a variety of applications and industries.
Here are some really amazing features of these satellite maxi actuators:

The plated inner tube and the outer tube are black E-coated. This provides ultimate protection to the tubes from corrosion.
The split clamp assembly for ½” bolt mounting of the satellite maxi actuators is very easy to install and does not take much time.
These actuators feature steel tube assembly, which has a high strength. This assembly comes with all-steel load support members.
The satellite maxi actuators also feature limit switches for single screw adjustment.
The 30% duty cycle motor ratings of these actuators, is one of the major reasons of their increasing popularity.
Effective freeze protection is provided by the vent throughout and water drains that come with these actuators.
High quality acme screw or long life ball screw actuation is one of the most striking features of these actuators.
These actuators feature a pilot guide, which helps prevent scraping and binding.
The maxi acme screw actuators feature Super Sensor II reed switch.
The satellite maxi actuators can be effectively interchanged with all the other actuators available in the field.
The ½” bolt mounting is very easy, thanks to the built in standoffs and forged steel end mount design with swivel.
The rugged steel tube construction makes these actuators capable of surviving harsh environments.
The compact design of these satellite maxi actuators makes it easy to install, as well as user friendly.
Another important beneficial feature of the maxi acme screw actuators is that they are KU or C band compatible.

Venture MAXI MA-818B36 - $499.00
Price listed includes an additional Steel Surcharge.
36” Stroke Ball Screw Has an 8 Pole Magnet for 40 Pulse Count, comes with an Accordion Boot, 8' to 16' Suggested mesh dish size.

For years the Venture “Maxi” has been the staple of the Home Satellite TVRO Industry. With over 1 million produced we still provide the industry with these reliable actuators for service and new installation needs.

Venture MAXI MA-818B36
$561.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 499.00 plus 62.00 Shipping and Handling

Description
Venture’s maxi ball screw actuators are available in standard models or can be customized to meet the specific needs of several industrial sectors. The actuator type, which is a ball screw version of the “Maxi”, is suitable for positioning heavier dishes. This actuator provides you years of reliable service and is preferred for many linear positioning applications.

Ball Screw Linear Actuator Features
Venture’s name is trusted and widely heard in the market place for precision made linear actuator ball screw guaranteed with high performance. Featuring heavy wall steel construction and sealed chamber design, this actuator type from Venture provides you with high efficiency and high speed while executing heavy duty linear positioning applications.

The Linear Ball Screw Actuators from Venture Exhibit the Following Unrivalled Features:

Rugged steel tube construction
The split clamp assembly for ½” bolt mounting of the satellite maxi actuators is very easy to install and does not take much time.
Easy-to-install
User friendly design and operation
5 pitch ball screw
1500 lb. capacity
Tube and gearbox easily taken apart for installation and service with simple tools
Interchanges with virtually all other actuators in the field today
Black E-coated outer tube and plated inner tube for superior corrosion protection
Plastic Pilot guide prevents metal to metal contact between the tubes
Forged steel end mount design with swivel and built in standoffs for ½” bolt mounting
Easy to install split clamp assembly for ½” bolt mounting
Mounting bolt kit included
Water drains and vents throughout for freeze protection
KU or C band compatible
36/24vdc motor
5amps @1500 lbs @ 36vdc

Actuator Accordion Boot for 24" Arm - $45.00

$60.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $45.00 plus $15.00 Shipping and Handling

Actuator Accordion Boot for 36" Arm - $84.00

$99.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $84.00 plus $15.00 Shipping and Handling

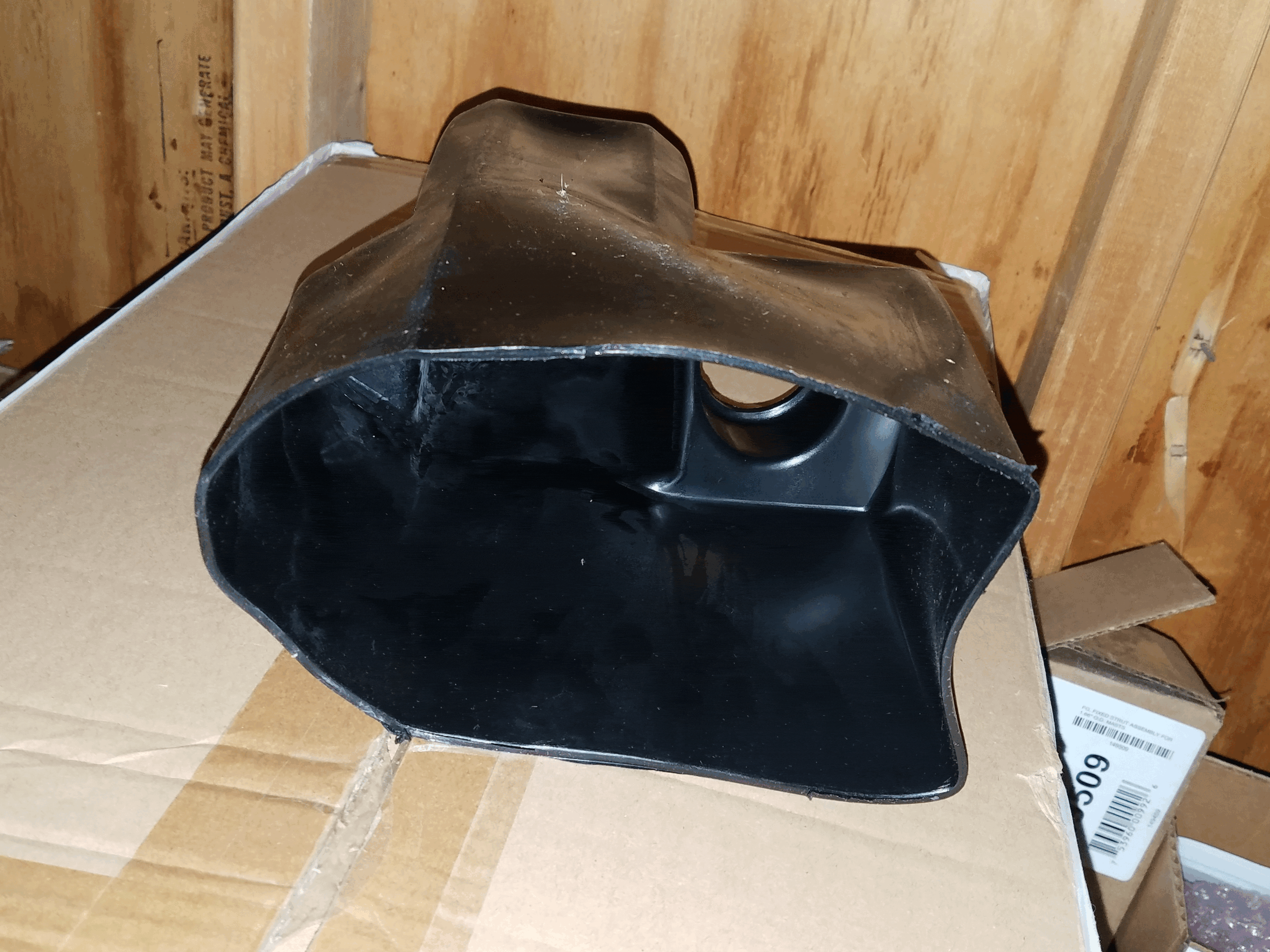

Actuator Motor Boot for 24" and 36" Venture ACME and Ball Screw Actuators - $49.00

$64.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $49.00 plus $15.00 Shipping and Handling

Venture Super Sensor - Reed Sensor / With Stand - $40.00

$49.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $40.00 plus $9.00 Shipping and Handling

Venture Super Sensor - Reed Sensor / With Stand and 8 Pole Magnet to give the Highest Pulse Possible - $49.00
This is for the 24" and the 36" Venture ACME Screw Actuators Only.

$59.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $49.00 plus $9.00 Shipping and Handling

Satellilte Dish / Actuator Movers

GLOBAL POSITIONER SERIES - GPS1 Dish Mover

$180.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $165.00 plus $15.00 Shipping and Handling

PR1200 Primesat V-Box Dish Mover

DiSEqC Positioner to Move An Actuator Arm - $179.00

Can be used as a Stand Alone Positioner using the Front Panel Buttons or the Included Remote Control
Or can be connected to a Free To Air Digital Satellite Receiver and then you can use the
DiSEqC 1.2 Motor Controls from the Satellite Receiver to run your Actuator Arm!

PR1200 Primesat V-Box Dish Mover

$194.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is $179.00 plus $15.00 Shipping and Handling
