"The SF8008 Octagon Receivers Now
Comes Pre Loaded with MULTI-BOOT!"
This allows the user to Install up to
4 Different Versions of Software and Pick the Version that
you want the receiver to boot up to.
We
Install Open ATV Enigma 2 software on Slot 1 and OS Define
software on Slot 2, leaving Slot 3 and 4 open. Open ATV is
one of many different Enigma 2 operating software that is
available for the SF8008. OS Define is the same software that
is used in the SX87 and SX88 Octagon Models and it is an
operating system that is much easier to learn and use. It is
more along the lines of operating software used in most basic
FTA receivers for several years.
With
the Option of Multi-Boot and OS Define Operating Software
(Easy Software), now even the most novice user cab=n use the
Best Receiver that we have to offer.
Please
Note, that when using the OS Define Operating Software on the
SF8008 DUAL Tuner model, the receiver thinks it is now an
SX88 model, which only has 1 Tuner. So while running OS
Define, you will not have access to Tuner B. When using any
of the Enigman 2 Operating Software, you have full access to
Both Tuner A and B.
The
receiver can also be connected to your network and you take
the IP Address of the SF8008 and open up a Broswer on your
computer and type in the receiver IP address and it will open
up a Webif Interface, allowing you to run the receiver from
your computer. If you have a fast enough computer with enough
memory, you can scan in the ABC or CBS 4:2:2 MPEG4 H.264 and
H.265 Network feeds and take the IP address assigned to the
channel when it was scanned and then open up VLC player and
input the channel IP address and VLC can play them, as it has
the proper codecs. If you have an HDMI output on your
computer, then you can send it out to your TV Set.
Modern entertainment
& numerous features
The Octagon SF8008 4K
UHD supports a variety of images, allows the download of
additional plugins and offers HDR, HLG and H.265 decoding.
With Gigabit LAN (1000Mbps) and permanently installed WIFI
module, it ensures a quick connection to high-resolution
content. Two WiFi antennas are also available. With an M.2
slot, USB 3.0, USB 2.0, a MicroSD slot and a card reader, the
receiver offers sufficient options for playing content from
external storage media. Additional connections include HDMI
2.0, AV (Audio & Video) and an S/PDIF output for digital
audio signals. In standby, the power consumption is less than
0.5 watts.
Versatile:
The receiver offers a PVR recording function, time-shifted
television via internal M.2 HDD hard drive or external USB
stick, access to YouTube, WiFi, media player & library,
internet functions, plug-in download and is for use with
Suitable for camping and more.
Extensive features:
The receiver has dual OS with E2 Linux and Define OS,
2xDVB-S2X satellite tuners, recording function and supports
customizable skin user interface as well as many free plugins
(extensions and apps) under the E2 Linux OS.
User-friendly:
The receiver offers an intuitive multilingual menu, extended
EPG (Electronic Program Guide), numerous images and skins for
download, satellite-to-IP TV optimization and support for E2
Multiroom Client.
Future-proof:
The receiver is equipped with a 4K H.265 HEVC UHD processor,
8GB eMMC Flash/1GB DDR DRAM, M.2 SSD slot, HDMI & USB
with PVR function, LAN, Wi-Fi, AV via RCA and for satellite
-to-IP TV optimized.
Metal housing &
solid workmanship
KEY FEATURES:
- Dual OS: E2 Linux & Define OS Linux
- 4K H.265 HEVC UHD processor (3840 x 2160)
- Hisilicon Hi3798MV200 Huawei
- Quad Core 64Bit (4x 1.6GHz) 15000 DMIPS
- Flash 8GB eMMC
- RAM 1GB DDR4
- M .2 slot (M.2 SSD: M KEY – PCIE NVME)
– Gigabit LAN Ethernet (1000Mbps) network interface
– permanently installed 2.4/5G dual-band WiFi (WLAN) up
to 1200Mbps, 2x WiFi antennas
– 4-digit 7- Segment Display
- CA card reader
- Hardware BlindScan (blind search)
- 2 x DVB-S2X (Twin Tuner) + Multistream Support
- Multiroom Client & Sat to IP Client Support
- HDMI 2.0a & USB 3.0
- MicroSD slot
- HDMI CEC Support

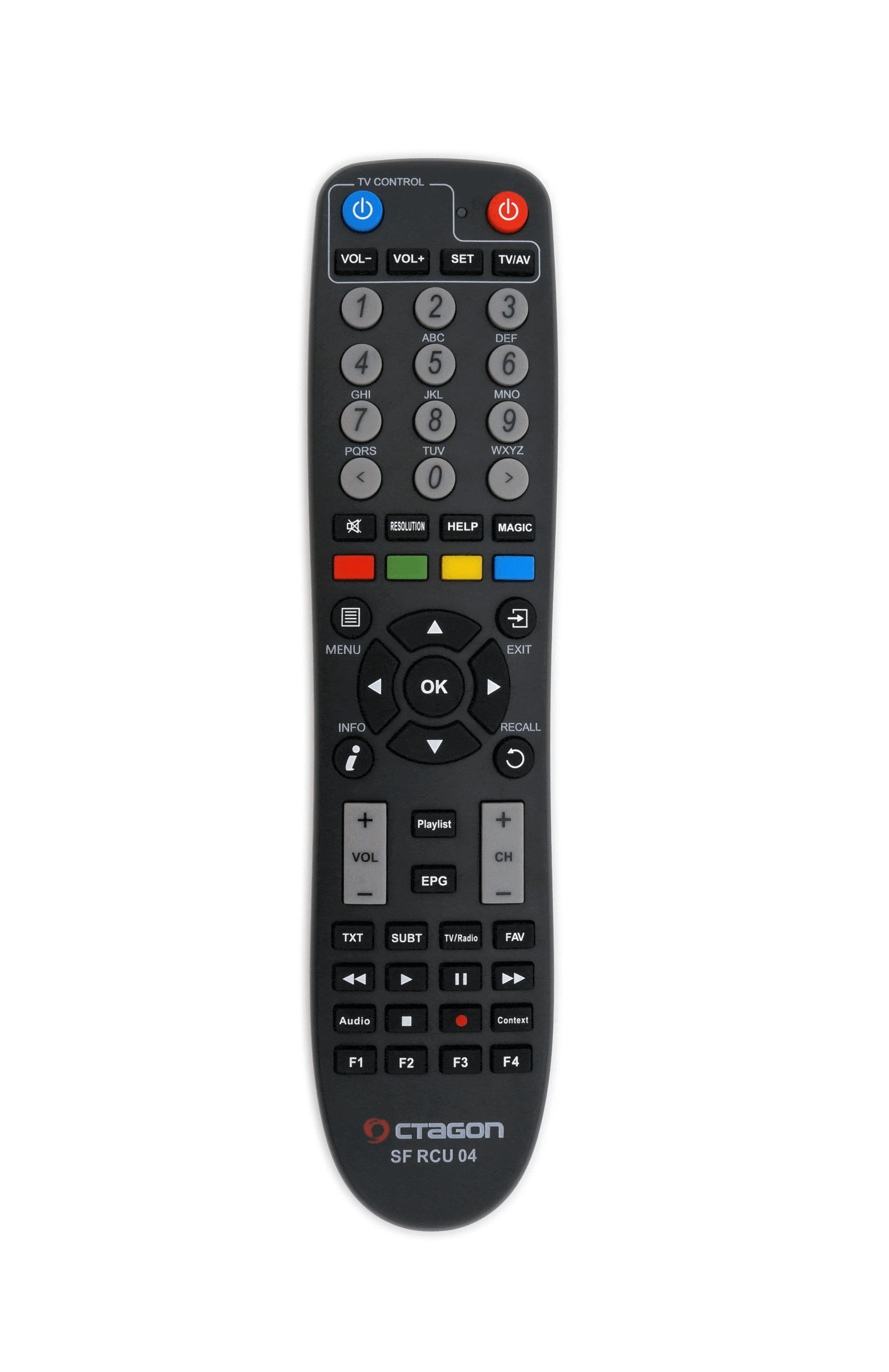

- Learnable remote control
SPECIAL FEATURES:
– DUAL OS: E2 Linux OS operating system & OCTAGON
Define Linux OS
– 2x DVB-S2X 4K UHD & Multistream (T2-MI direct
input)
– Symbol rates of 100 – 80,000 SR
– PIP HD & UHD (Picture in Picture)
– HDR 10bit & HLG
– Multi Transcoding & Multiroom
– Sat>IP Client & V-tuner USB Dongle
– Blindscan (blind search)
– Media libraries of public broadcasters
– HW Multiboot
– ffmpeq HW Playback Support
– 2160P Media Playback H.264 and H. 265
- OTA Updates
- DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast-Scan
- PVR recordings (*optional)
- 12V connection (also suitable as a camping receiver for
motorhomes or caravans. 12V car adapter not included)
- 0.5 W standby
FRONT SIDE:
– Power button on/off button
– 4-digit 7-segment display
– LED display (red / blue)
– IR sensor (infrared receiver)
BACK PANEL:
- 2x H.265 4K UHD DVB-S2X tuner LNB input
- Dolby S-PDIF
- AV - Audio video socket - Jack to RCA
- RS-232 socket (maintenance & service)
- WiFi 2x WLAN antennas
- HDMI 2.0a Output
– USB 2.0 port
– Network Gigabit LAN (1000Mbps)
– MicroSD slot
– Recovery (Reset) button
– DC-12V power supply
– Power switch on/off
RIGHT SIDE:
– USB 3.0 port
– Card reader (CA CARD)
INSIDE:
– M.2 slot for internal SSD hard drive (M.2 SSD: M KEY
– PCIE NVME)
SCOPE OF DELIVERY:
– Receiver OCTAGON SF8008 4K SUPREME TWIN
– Learnable remote control
– 2 x AAA batteries
– Operating instructions (German & English)
– HDMI cable

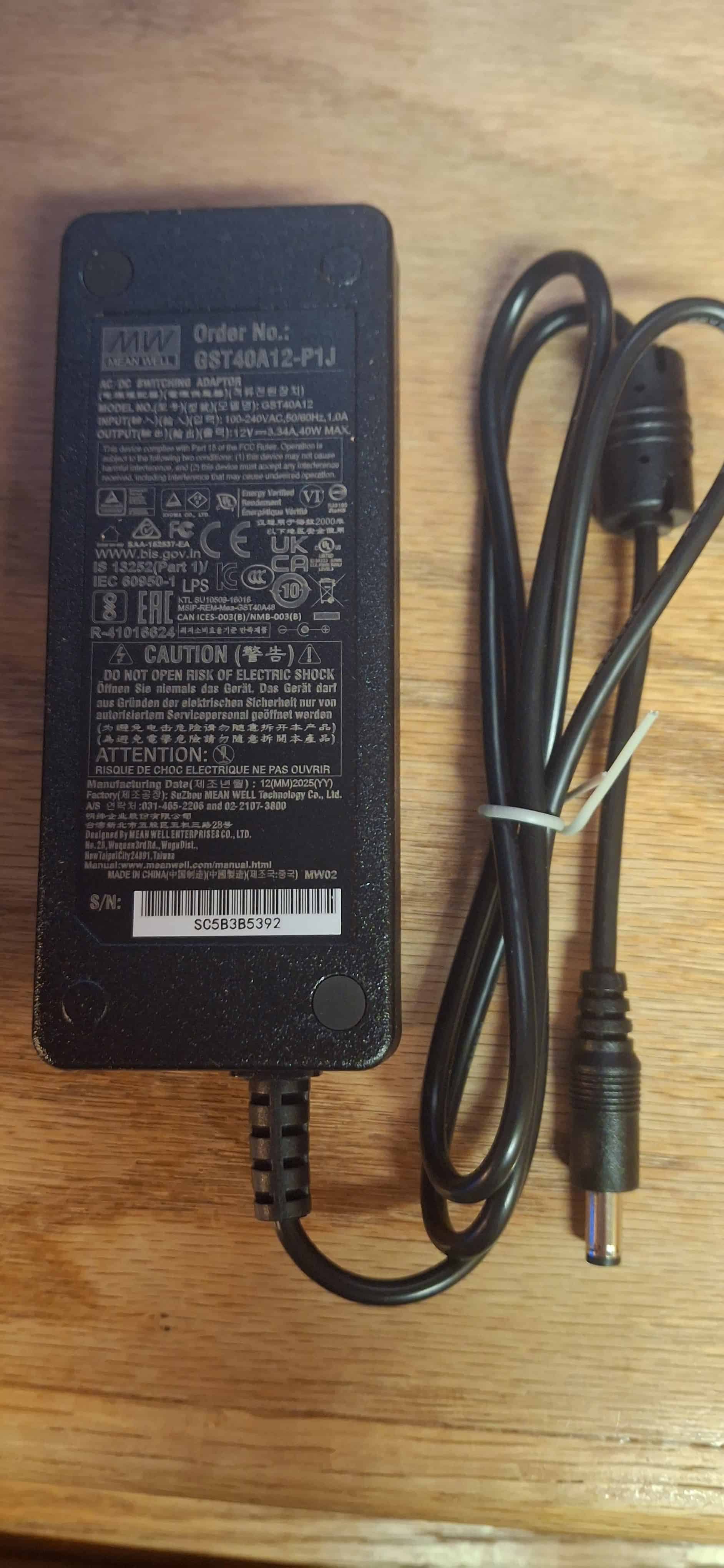

– Power supply (power supply)
TUNER &
DEMODULATOR:
– 2 x DVB-S2X: Availink AVL62X1 & RDA5815m
OTHER:
- Dimensions (LxDxH) 220mm x 125mm x 40mm
- Power supply (power supply) DC12V-3A
