HH90 STAB Motors - Direct from Italy

Motorize your Ku-Band dish and run it with a Receiver with DiSEqC 1.2 capabilities.
This unit works off of the single coax cable that is used to power the LNBF. This STAB Motor will let you move your
Ku-Band dish (Up to 95cm in size and Up to 22 lbs.) to different Satellites for MORE FREE TO AIR CHANNELS.

Horizon-to-Horizon STAB Motor for use with dishes up to 95cm in diameter.

STAB HH90 Horizon to Horizon DiSEqC 1.2 Motorized Mount
$95.00 Plus $15.00 shipping in the Cont. 48 United States

CURRENTLY OUT OF STOCK

HH120 STAB Motors - Direct from Italy

Motorize your Ku-Band dish and run it with a Receiver with DiSEqC 1.2 capabilities.
This unit works off of the single coax cable that is used to power the LNBF. This STAB Motor will let you move your
Ku-Band dish (Up to 1.2 Meters in size) to different Satellites for MORE FREE TO AIR CHANNELS.

Horizon-to-Horizon STAB Motor for use with dishes up to 120cm in diameter.

STAB HH120 Horizon to Horizon DiSEqC 1.2 Motorized Mount
$149.00 Plus $16.50 shipping in the Cont. 48 United States

CURRENTLY OUT OF STOCK

Download: Manual

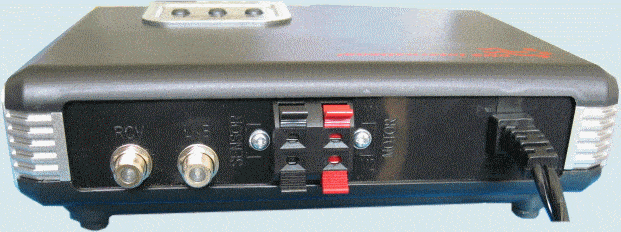

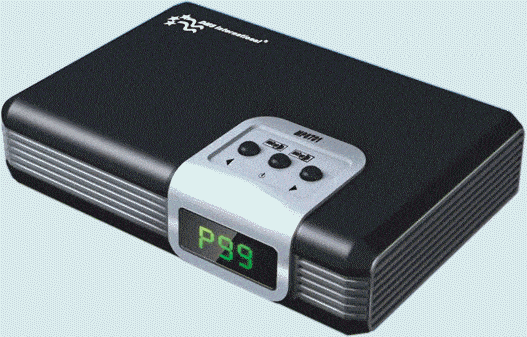

PR1200 Primesat V-Box Dish Mover - Now In Stock

DiSEqC Positioner to Move An Actuator Arm - $89.00 USD

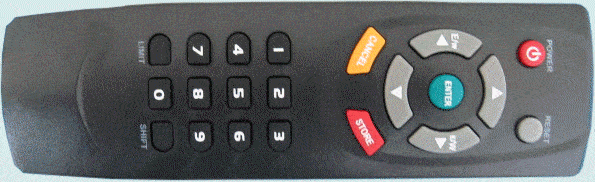

Can be used as a Stand Alone Positioner using the Front Panel Buttons or the Included Remote Control
Or can be connected to a Free To Air Digital Satellite Receiver and then you can use the
DiSEqC 1.2 Motor Controls from the Satellite Receiver to run your Actuator Arm!

PR1200 Primesat V-Box Dish Mover - Now In Stock

$104.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 89.00 plus 15.00 Shipping and Handling

Actuator Arms

High Quality Actuators,  easy to install, Single Screw Adjustment Limit Switches, water drains and vents through out for freeze protection. Pilot guide prevents binding and scraping. Long life ball screw or high quality acme screw actuation, 30% duty cycle motor ratings. High strength steel tube assembly with all-steel load support members, Tube surfaces and exposed metal components are specially treated for corrosion resistance.

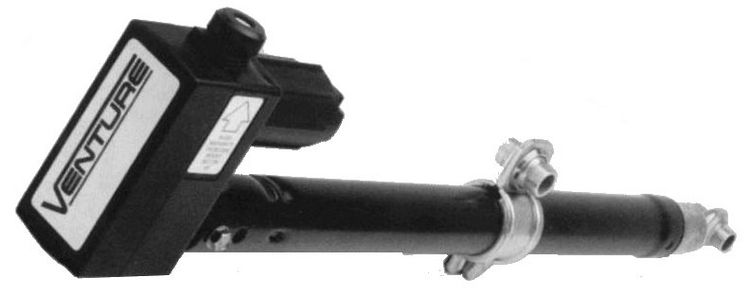

Venture Mini MA710-18T - $ 87.00
600 lb. Load, 6' to 7.5' Suggested mesh dish size.

Venture Mini MA710-18T
$107.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 87.00 plus 20.00 Shipping and Handling

Venture MA-810-24K - $ 149.00
24" ACME Screw, 1000 lb Load, 32 Pulse, 10' Suggested mesh dish size.

I had this model built with a special higher pulse count. Now with 40 Pulse Count to allow for better accuracy in postioning your dish!

MA-810-24K
$177.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 149.00 plus 28.00 Shipping and Handling

Add an 24" Accordion Boot to this 24" Actuator for 29.95 with No Additional Shipping

Venture Ball Screw MA818-B24 - $ 247.00
w/Accordion Boot, 24" Ball Screw, 1500 lb load, 40 Pulse, 16' Suggested mesh dish size.
Comes with Accordion Boot

Venture Ball Screw MA818-B24
$284.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 247.00 plus 37.00 Shipping and Handling

Venture MA-818-36 - $ 249.00
36"ACME Screw, 1000 lb load, 32 Pulse, 16' Suggested mesh dish size.

MA-818-36
$288.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 249.00 plus 39.00 Shipping and Handling

Venture MA-818B36 - $ 349.00
36" BALL SCREW, 1500 lb load, 40 Pulse and Heavy Duty Clamp, 16' Suggested mesh dish size.

MA-818B36
$388.00 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 349.00 plus 39.00 Shipping and Handling

Actuator Accordion Boot for 24" Arm - $ 29.95

$39.95 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 29.95 plus 10.00 Shipping and Handling

Actuator Accordion Boot for 36" Arm - $ 43.95

$53.95 Includes Shipping
Includes Shipping within the 48 Cont. United States
Actual price is 43.95 plus 10.00 Shipping and Handling

All Shipping prices are for within the 48 Cont. United States
