Welcome to "Ricks Satellite"
In Association with Gofastmotorsports.com

Item # GLOBAL STAR SYS 100 - $169.00 Includes Shipping

Includes Traxis DBS1500 MPEG2 Satellite Receiver, DMSI 0.4db Ku-Band LNBF & 75CM Orion Offset Satellite Dish.


DBS1500 Traxis
1 Year Manufacturer Warranty
BSC321S 0.4db Ku-Band LNBF

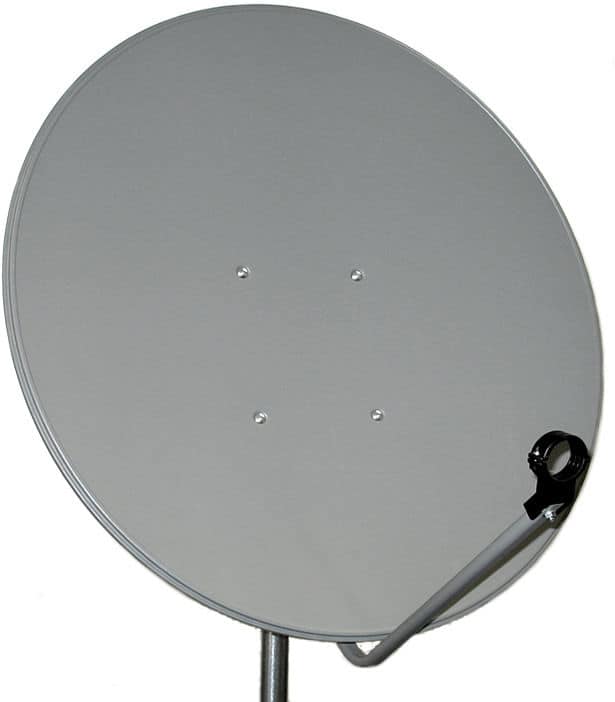

Orion 75CM- 75CM Satellite Dish

Item # GLOBAL STAR SYS 100 - $169.00 Includes Shipping
Within the 48 Cont. United States

Includes Traxis DBS1500 MPEG2 Satellite Receiver, DMSI 0.4db Ku-Band LNBF & 75CM Orion Offset Satellite Dish.

Installation Kit available for $12.95 - Includes 100' of RG6 Coax Cable, Lag Bolts, Cable Clips & Compass

Signal Meter SF95 for $14.95 - This can be helpful in aiming in the dish to locate the satellite.

0.3db Ku-Band Dual Outlet LNBF Upgrade, instead of Single Outlet - Item # BSC322-2 - $15.00

DBS2500 Technical Specifications DVB, MPEG2

LNB / Tuner input
Connector 1 x "F"-type
RF input frequency 950~2150MHz
RF input power level -20~-65 dBm
Supply voltage 13/18 V ± 5%
Max. current 500mA, overload protected
Control voltage 22KHz, 0.65 Vpp
DiSEqC Tone burst A/B or Level 1.2
RF impedance 75 ohm

Video
Connector 1 x RCA

Audio
Connector 2 x RCA ( R+L )
Output 0.5 Vrms m± 0.5 dB / RL 10 k ohm

Serial (RS232) serial data
Connector 9-pin D-sub male
Signals RS232, max. 115.2 kbit/s
Pin out
1 DCD (Data carrier detect) not connected
2 RXD (receive data)
3 TXD (Transmit data)
4 DTR (Data terminal ready) Set to high
5 GND (Signal ground)
6 DSR (Data set ready) not connected
7 RTS (Ready to send)
8 CTS (Clear to send)
9 RI (Ring indicator) not connected

Other Data
Supply voltage 110~240V AC, 47~63Hz
Power consumption max. 20W at 500mA LNB load
Power consumption in standby 5W
Operating temperature +5ºC to +40ºC
Storage temperature -40ºC to +65ºC
Humidity 25 to 90% rel humidity
Operating distance for remote control max. 10 meters

GOOD BASIC FREE TO AIR SYSTEM
 Item # GLOBAL STAR SYS 100 - $169.00 Includes Shipping
Within the 48 Cont. United States

Includes Traxis DBS1500 MPEG2 Satellite Receiver, DMSI 0.4db Ku-Band LNBF & 75CM Orion Offset Satellite Dish.

Installation Kit available for $12.95 - Includes 100' of RG6 Coax Cable, Lag Bolts, Cable Clips & Compass

Signal Meter SF95 for $14.95 - This can be helpful in aiming in the dish to locate the satellite.

0.3db Ku-Band Dual Outlet LNBF Upgrade, instead of Single Outlet - Item # BSC322-2 - $15.00

Ricks Satellite
Sales, Service & Local Installation -- C / Ku / MPEG2 Satellite Systems / DSS Accessories
316 NE Summit Drive -- Blue Springs, Missouri 64014 USA -- 816-228-1801

Contact Ricks Satellite

Major Credit/Debit Cards Accepted
Money Orders and Checks accepted also.

Ricks Satellite cannot offer for Sale any Manufacturers Extended Warranties. They must be purchased directly from the Manufacturer.

PAY PAL Address is RickCaylor@aol.com or RicksSatellite@aol.com
Most Orders Shipped Same Day! UPS Tracking numbers are also provided!
