VANTAGE HD1100S
The BEST DVB-S and DVB-S2 BLIND SEARCH RECEIVER IN THE US!
FEED HUNTERS MUST HAVE THIS RECEIVER!

HD1100S Vantage Satellite Receiver

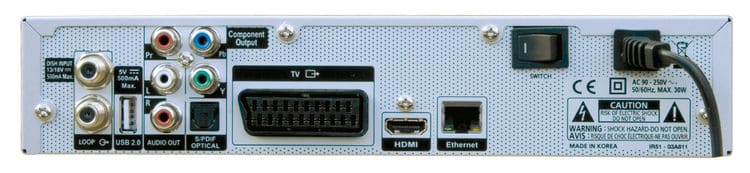

Click on Image for Larger Picture

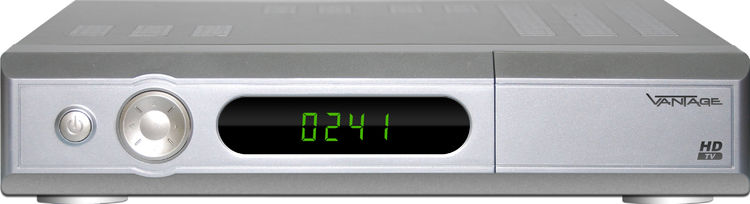

Click on Image for Larger Picture

This Receiver Features DVB-S & DVB-S2 BLIND SEARCH!

329.00 plus 10.00 for shipping in the 48 Cont. United States

This receiver can do MPEG2 DVB-S & DVBS2 4:2:0 SD & HD & MPEG4 H.264

This unit is made for Europe and has some issues on North American High Bit Rate HD feeds. It will stutter when trying to play them with the software version 2.44, which is the best version to use for Blind Search. Vantage did try and fix the problem and came out with newer software, 2.54 and it has an Audio offset feature which does allow for some of the Higher Bit Rate feeds to play good or better, but some are still not perfect and the newer version of software does not blind scan as well.

The receiver from the factory will boot up in the PAL mode. I hook them up and set them to NTSC and also provide an SCART to Composite A/V Adaptor with the unit, so if it ever gets back into the PAL mode, you can use this adapter to hook up to an NTSC TV set with Composite Video and this will stop the PAL Rolling and allow you to see the Menu in Black and White and navigate the menu and set the unit back into the NTSC mode.

Also on some TV sets, when hooked up with the HDMI connection, the picture can blink to Black and then back to a picture when in the MENU. This does not happen with all TV sets, but does on my Mitsibishi. It does not do this when on a Channel and playing Video, but just in the menu. So it will depend on your TV set and if it has an up to date software to be able to handle all of the different types of HDMI.

This is a GREAT Feed Hunters Unit. Be

The Smallest Receiver Vantage HD series.
Small receiver with BIG power.
With the HD1100S, it is possible to record to an External USB device.
The network connection enables streaming between 2 Vantage HD receivers
or download content via FTP Vantage.

Built in Upscale SD broadcasts up to 1080i

Product Features

Dimensions
Dimensions [L x W x H] 260mm x 180mm x 57mm
Weight about 2.0 kilograms
Connections
HDMI Ver. 1.2
SCART 1x TV
RCA HD YUV (YPbPr) or RGB
RCA SD Audio x 2
Tuner IEC169, F-connector, female
S / PDIF Optical
PVR USB 2.0
Network 10 / 100 MBit
r Audio / Video Decoder
Video Format 4:3 & 16:9 [Letter Box, Pan & Scan]
Video Resolution 1080i, 720p, 576p, 576i (SCART)
Transport Stream ISO MPEG 2 / 4
Audio Decoder MPEG Audio Layer 1 & 2
Conditional Access System
Common Interface 1 slot PCMCIA, DVB CI standard
Smart Card 1 Slot
CAS Conax, XCrypt, DGCrypt, CryptOne, Firecrypt
LNB Control
Polarization 13/18V (max 500 mA)
Amplitute 0.7 V + / - 0.1 V
DiSEqC 1.0, 1.1, 1.2, USALS
n 22 KHz tone + / - 4 KHz
Power Supply
Input Voltage AC 90-250V 50Hz/60Hz
Current 29 watts max
Standby less than 3 watts
S System
Flash Memory 8 MB
SDRAM 2 x 64 MB
EEProm 32 kByte
VDRAM 1 x 64 MB of SDRAM
Processor STi7101, 266 MHz
Tuner
Input Symbol Rate DVB-S: 2-45 MS / S
Input Symbol Rate DVB-S2: 10-31 MS / s [8PSK]
Signal Level -35 - -85 DBm
Frequency 950 MHz to 2150 MHz
VANTAGE HD1100S
